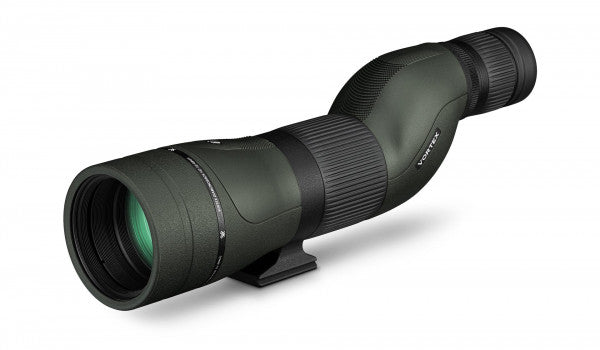

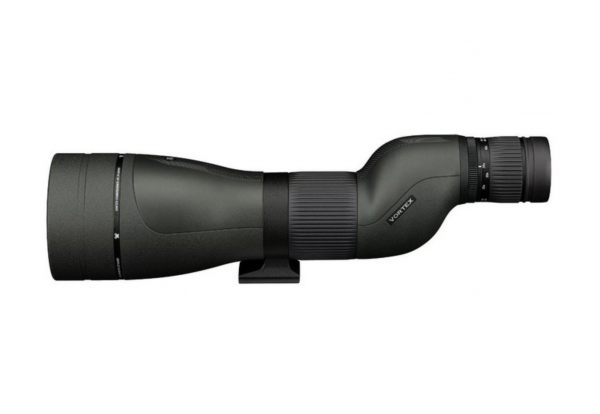

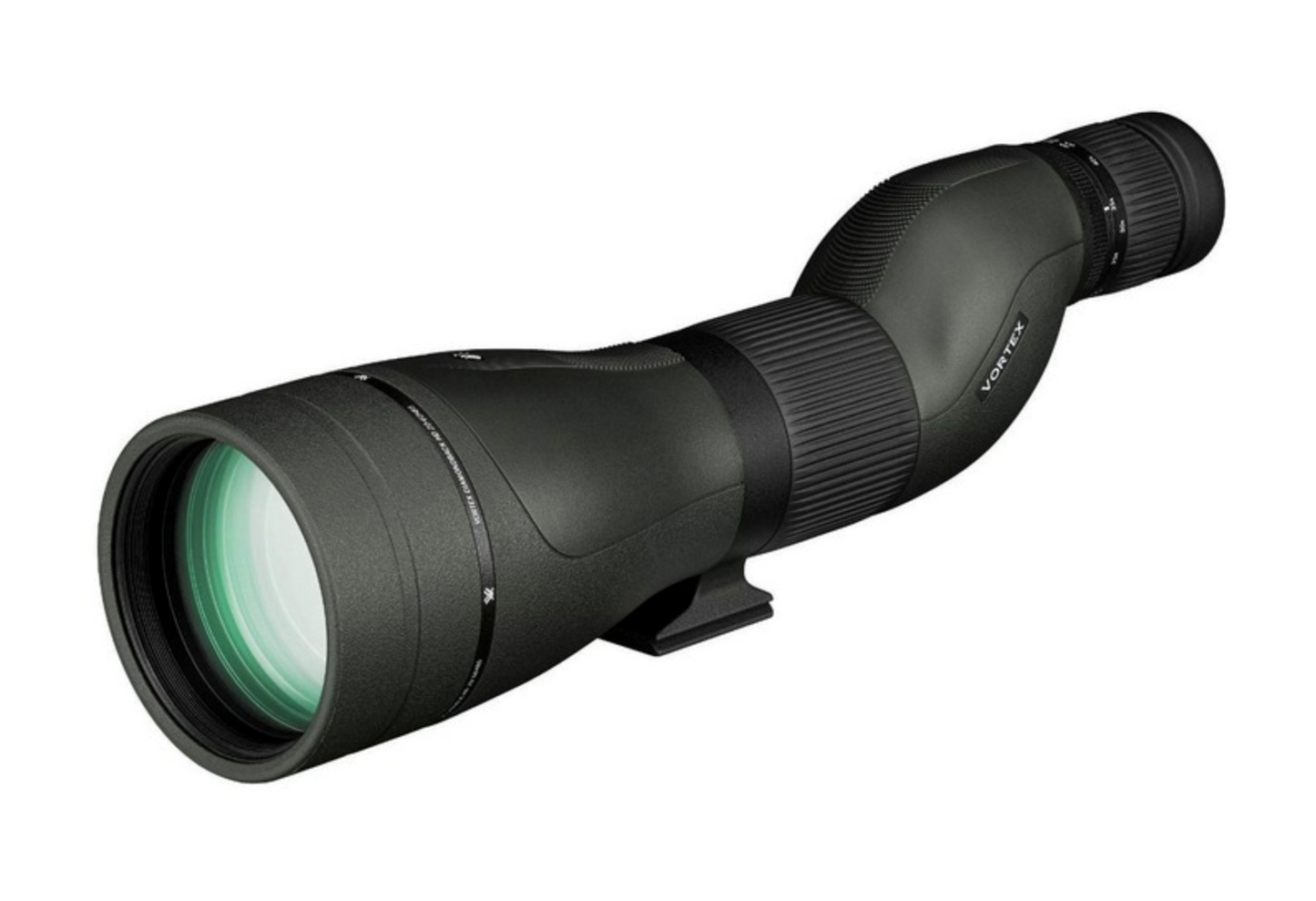

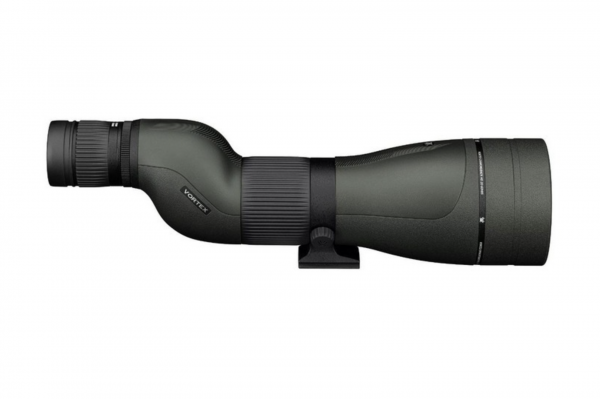

Vortex Diamondback HD Straight Spotting Scope

£429.99

£358.33 (ex. VAT)

Save £-429.99 Sold out In stock Coming Soon

Taxes included.

SKU: Product code: DS-65S

The Vortex Diamondback HD Straight Spotting Scope combines detailed HD optics with variable magnification for birdwatching and wildlife observation. Available in 16–48x65 and 20–60x85 configurations, the range offers a choice between a more portable scope for regular outings and a larger model for studying distant subjects across open landscapes.

The straight eyepiece provides a direct viewing position that makes aligning the scope with a bird or animal intuitive. Fully multi-coated lenses, helical focusing and ArmorTek® exterior lens protection complement a durable, waterproof and fogproof body built for outdoor observation.

Magnification 16-48x65 20-60x85

View full details

Further Information

The Diamondback HD optical system uses selected glass elements to reduce colour fringing and deliver natural colour reproduction with clear detail. This helps observers examine plumage, distinguish identifying markings and appreciate wildlife from a comfortable distance.

Variable magnification allows you to begin with a wider view to locate your subject, then increase the zoom for closer examination. This flexibility is useful when moving between watching a group of birds and studying an individual.

The straight viewing layout is convenient for looking towards subjects at a similar height. It also works well for observation from a hide or vehicle using a suitable support, helping you move naturally from unaided viewing to the magnified image.

Fully multi-coated lenses improve light transmission. ArmorTek® protects external lens surfaces against scratches, oil and dirt, while the helical focusing mechanism maintains a streamlined profile for packing and handling.

Argon purging and O-ring seals provide waterproof and fogproof performance. Rubber armouring adds grip and exterior protection, and the shockproof construction supports regular use in the field.

The mounting foot attaches directly to compatible Arca-Swiss tripod heads. Other tripod or car-window mounting systems may require an adapter.

Technical Specification

Specifications common to both models

Body style: Straight
Optical system: HD
Lens coatings: Fully multi-coated
Exterior lens protection: ArmorTek®
Focus mechanism: Helical
Eye relief: 18.3–20.3mm
Eyepiece diameter: Approximately 53.4mm
Gas purging: Argon
Waterproof / fogproof / shockproof: Yes
Mounting: Arca-Swiss compatible; tripod adaptable
Warranty: Vortex VIP lifetime warranty

Diamondback HD 16–48x65 Straight

Magnification: 16–48×
Objective lens diameter: 65mm
Angular field of view: 2.6°–1.4°
Field of view at 1,000m: Approximately 46–24m
Close-focus distance: Approximately 5m
Length: Approximately 348mm
Weight: Approximately 1,429g

Diamondback HD 20–60x85 Straight

Magnification: 20–60×
Objective lens diameter: 85mm
Angular field of view: 2.1°–1.1°
Field of view at 1,000m: Approximately 36–20m
Close-focus distance: Approximately 7.5m
Length: Approximately 401mm
Weight: Approximately 1,738g
