VORTEX

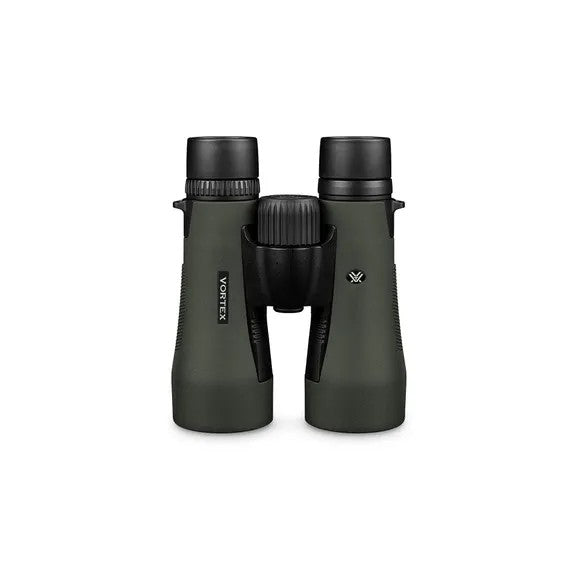

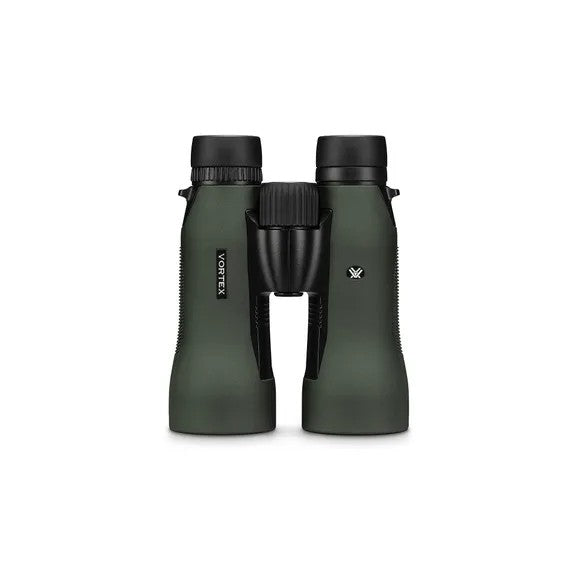

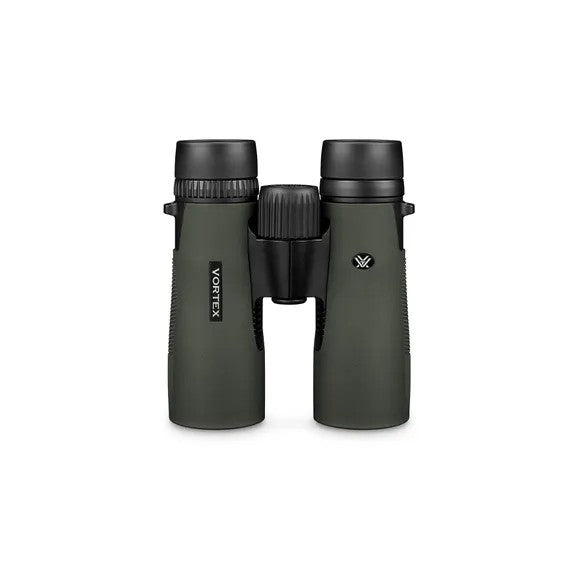

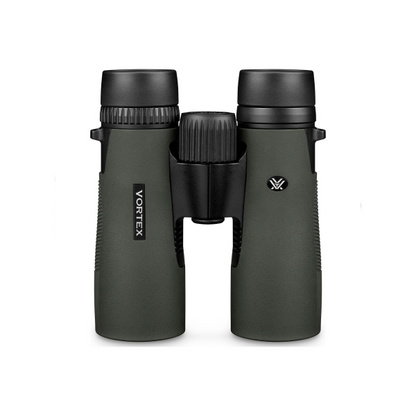

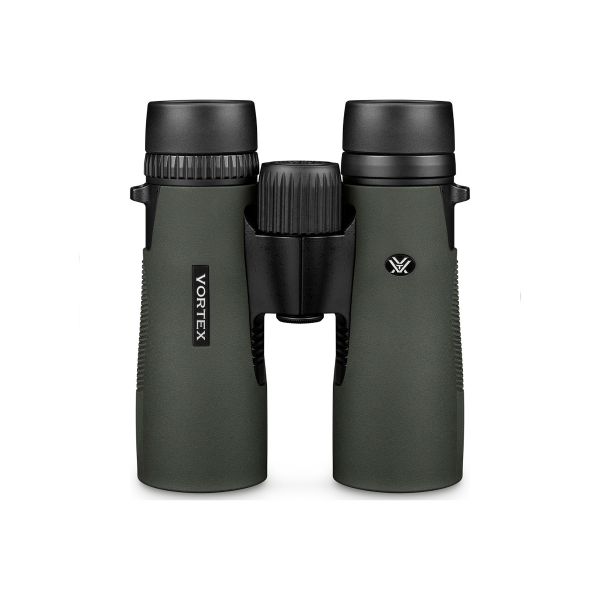

Vortex Diamondback HD Binoculars with GlassPak Harness
Vortex Diamondback HD Binoculars with GlassPak Harness
SKU: Product code: DB-214
The Vortex Diamondback HD Binoculars combine impressive resolution, enhanced contrast and rugged outdoor durability for dependable birdwatching and wildlife observation. Available in 8x42, 10x42, 10x50, 12x50 and powerful 15x56 configurations, every model comes complete with a Vortex GlassPak binocular harness for comfortable carrying, protection and quick access in the field.
Couldn't load pickup availability
- X (Twitter)
Share

Collapsible content
Further Information
The Vortex Diamondback HD range offers a versatile selection of full-size binoculars suited to everything from everyday birdwatching to detailed, long-distance wildlife observation. Each model features the Vortex HD Optical System, which uses selected glass elements to improve resolution, reduce chromatic aberration and produce naturally coloured, edge-to-edge views.
Fully multi-coated lenses increase light transmission, while dielectric prism coatings produce bright, clear and colour-accurate images. Phase-corrected roof prisms further enhance resolution and contrast, helping observers distinguish subtle plumage, markings, textures and movement in a variety of natural environments.
The exterior lenses are protected by ArmorTek, an ultra-hard, scratch-resistant coating designed to repel dirt and oil. A durable rubber-armoured body provides a secure, non-slip grip, while the true open-hinge design offers comfortable handling without unnecessary bulk.
Argon gas purging and O-ring seals provide reliable waterproof and fogproof performance through changing weather and temperatures. Adjustable eyecups accommodate users with or without glasses, while the central focus wheel and right-eye dioptre allow fast, precise adjustment.
Each size offers different benefits for nature observation:
- 8x42: Offers a wide field of view, comfortable eye relief and steady handling for birdwatching, woodland observation and general outdoor use.
- 10x42: Provides greater reach while retaining a lightweight and versatile full-size design.
- 10x50: Combines detailed 10x magnification with larger, light-gathering objective lenses for excellent performance in subdued light.
- 12x50: Delivers increased magnification for observing distant birds, mammals and landscape features across open environments.
- 15x56: Provides powerful long-distance viewing and a large 56mm objective lens for detailed observation across expansive landscapes. Tripod use is recommended, and a tripod adapter is included with this model.
Every magnification option includes a Vortex GlassPak binocular harness. The harness keeps the binoculars protected and comfortably positioned close to the body while still allowing quick access when wildlife appears.
Technical Specification
Vortex Diamondback HD 8x42
- Magnification: 8x
- Objective lens diameter: 42mm
- Eye relief: 17mm
- Angular field of view: 7.5°
- Linear field of view: 393ft at 1,000yds
- Close focus: 5ft
- Interpupillary distance: 55–73mm
- Height: 5.7"
- Width: 5.1"
- Weight: 21.8oz
Vortex Diamondback HD 10x42
- Magnification: 10x
- Objective lens diameter: 42mm
- Eye relief: 15mm
- Angular field of view: 6.3°
- Linear field of view: 330ft at 1,000yds
- Close focus: 5ft
- Interpupillary distance: 55–73mm
- Height: 5.7"
- Width: 5.1"
- Weight: 21.3oz
Vortex Diamondback HD 10x50
- Magnification: 10x
- Objective lens diameter: 50mm
- Eye relief: 17mm
- Angular field of view: 6°
- Linear field of view: 315ft at 1,000yds
- Close focus: 6ft
- Interpupillary distance: 60–75mm
- Height: 6.6"
- Width: 5.3"
- Weight: 30oz
Vortex Diamondback HD 12x50
- Magnification: 12x
- Objective lens diameter: 50mm
- Eye relief: 14mm
- Angular field of view: 5.2°
- Linear field of view: 271ft at 1,000yds
- Close focus: 6ft
- Interpupillary distance: 60–75mm
- Height: 6.4"
- Width: 5.3"
- Weight: 28.9oz
Vortex Diamondback HD 15x56
- Magnification: 15x
- Objective lens diameter: 56mm
- Eye relief: 15.6mm
- Angular field of view: 4.4°
- Linear field of view: 230ft at 1,000yds
- Close focus: 14ft
- Interpupillary distance: 59–76mm
- Height: 7.1"
- Width: 5.8"
- Weight: 34.8oz
- Tripod use recommended: Yes
- Tripod adapter included: Yes
Shared Features
- HD Optical System
- Fully multi-coated lenses
- Dielectric prism coatings
- Phase-corrected roof prisms
- ArmorTek exterior lens protection
- True open-hinge design
- Protective rubber armour
- Centre focus wheel
- Right-eye dioptre adjustment
- Twist-up adjustable eyecups
- Argon gas purged
- O-ring sealed
- Waterproof
- Fogproof
- Shockproof
- Tripod adaptable
- GlassPak binocular harness included
